| Engine |
|
• Four cylinder L-head. 3.187 inch bore x 3.75 inch stroke.
• Piston displacement- 119.7 cu. in.
• Compression ratio- 6 to 1. |
| Horsepower |
 |
• Maximum horsepower at belt pulley- 23.87.
• Rated belt horsepower (85% of maximum) 20.29. |
| Drawbar |
|
• 2-14" plow capacity with Ferguson hydraulically operated
implements.
• Maximum drawbar without Ferguson hydraulic system of control-
16.90 horsepower.
• Rated drawbar horsepower (75% of maximum) 12.68.

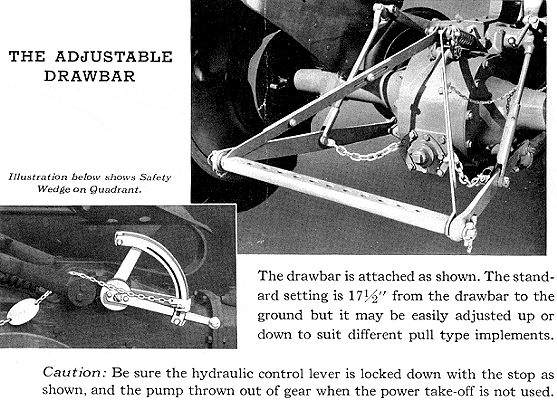

• Adjustable type. Included as standard equipment. |

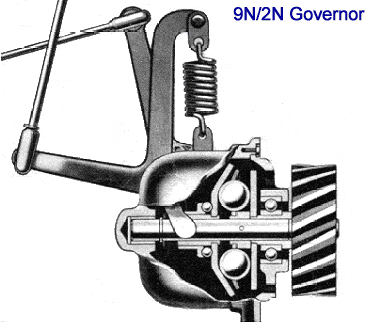

| Governor |
|
• Variable speed, mechanically operated, centrifugal type.
• Governor regulation from 800 to 2200 rpm. |
| Lubrication |
|
• By gear pump supplying direct pressure oiling to crankshaft,
camshaft and connecting rod bearing, also to timing gears.
• Crankcase oil capacity- 6 quarts of 10w-30 HD that meets
the API Service Classifications. |
| Oil Filter |
|
Replaceable cartridge type of large capacity. |
| Ignition |
|
• Front-mounted direct driven distributor in unit with coil
in waterproof housing.
• Fully automatic spark advance.
• Static timing is TDC.
• Contact point gap- .015.
• Firing order is 1-2-4-3.
• Champion H10 or H12 spark plugs with .026 gap. |
| Generator |
|
• 6-volt type with third brush control. |
| Starter |
|
• 6-volt conventional type automobile starter. Mounted on left
side.
• Safety starter switch mechanically interlocked with gear shift
lever.
• Shifter must be in neutral to start. |
| Battery |
|
• 6-volt battery w/positive ground. 85 ampere-hour capacity-
13 high plates. |
| Cooling |
|
• Pump circulation of water through copper tube and fin type
radiator.
• Fan- 4-blade push-type 16" driven by belt (Optional 4-
blade pull-type and 6- blade push-type).

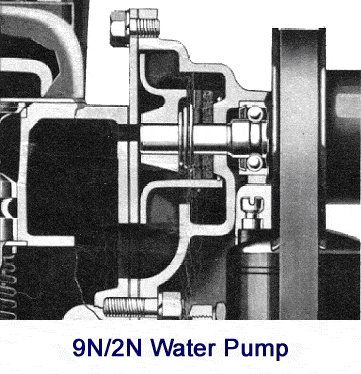

• Pump is packless type with pre-lubricated bearings.
• Cooling system capacity- 14 U.S. quarts. |

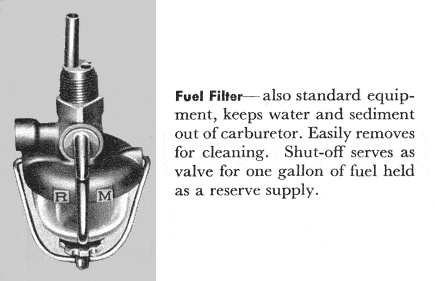

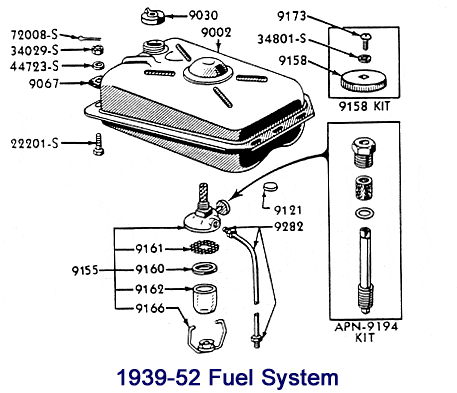

| Fuel Supply |
|
• Welded steel tank carried in engine hood.
• Capacity- 9 gallons plus 1 gallon reserve. Two turns open on
fuel valve for standard and full open for reserve operation.
• Fuel filter is standard equipment. |
| Carburetor |
|
• Marvel-Schebler TSX33 up draft, plain tube type of sturdy,
dustproof construction. |

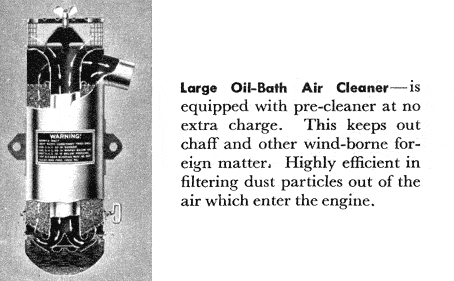

| Air Cleaner |
|
• Oil Bath type with dust receptacle easily removable for cleaning. |

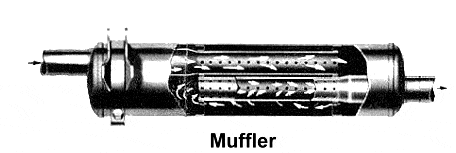

| Muffler |
|
• Reverse-flow type. Fitted as standard equipment to carry exhaust
to the rear of the tractor. |

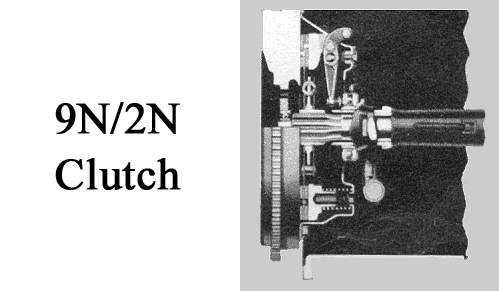

| Clutch |
|
• Single dry plate 9" effective diameter. Clutch plate pressure
increased by centrifugal force as engine speed is increased. |
| Transmission |
|
• Sliding gear- 3 forward speeds and one reverse.
• All shafts mounted on tapered roller bearings.
• Capacity for transmission, hydraulic mechanism and differential
is 5 gallons.

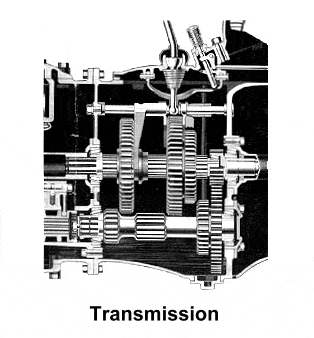

• Transmission
Speeds |
| Final Drive |
|
• Spiral bevel gear drive with straddle-mounted pinion 6.66 to
1 ratio.
• Four pinion differential mounted on tapered roller bearings.
• Drive axle of the semi-floating type with integral axle shafts
and wheel hubs, also mounted on tapered roller bearings.
• Final
Gear Reductions |

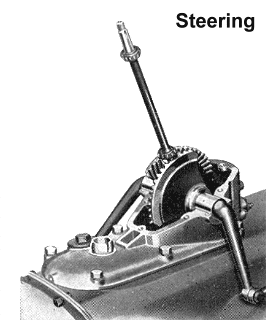

| Steering |
|
• Beveled pinion and twin bevel sectors controlling both front
wheels independently.
• Tread of front axle adjustable without disturbing any steering
connections.
• Rubber covered steel steering wheel 18" diameter. |

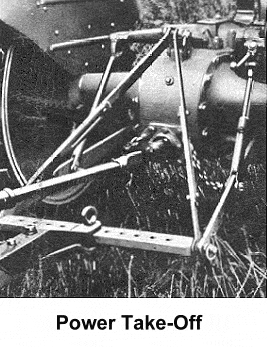

PTO
(Power Take Off) |
|
• Shaft extends from rear of axle housing.
• Has standard 1-1/8" spline end for fitting to drives of
power driven equipment.
• 509 rpm of engine speed of 1400 rpm.
• 545 rpm of engine speed of 1500 rpm.
• PTO control lever is located on left side of tractor near drivers
foot. |

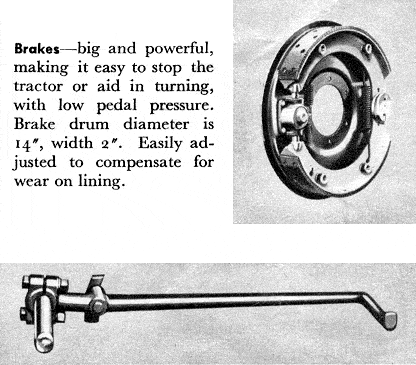

| Brakes |
|
• 14" x 2" internal expanding, two shoes, fully energizing
type.
• One simple accessible adjustment on each brake.
• Brakes operate independently on each rear wheel controlled by
separate pedals to facilitate short turning. |
| Wheels |
|
• Front- Steel disc fitted with 4 x 19 single rib tires on drop
center rim, tire pressure- 26 lbs.
• Rear- Steel disc fitted with 8 x 32 traction tread tires on
drop center rim, tire pressure- 12 lbs. |
| Hydraulics |
|
• Consists of 4 cylinder pump supplying oil under suitable pressure
to ram cylinder.
• Valve has manual and automatic control.
• Control lever convenient to the operator's right hand gives
him instant control of the implement.
• Capacity for transmission, hydraulic mechanism and differential
is 5 gallons. |

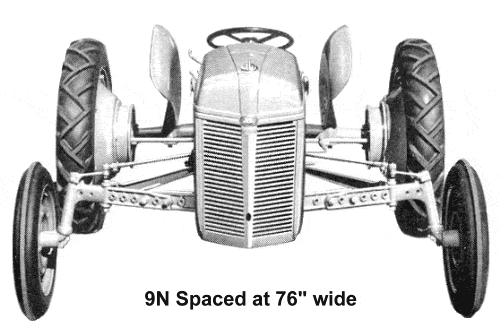

| Dimensions |
|
• Wheelbase- 70".
• Normal Tread- Front and rear- 48".
• Front Tread- Adjustable, by means of extending axles ends and
reversing front wheel discs, to 76" in 4" steps.
• Rear Tread- Adjustable, by means of reversible wheel disc and
reversible tire rims, to 76" in 4" steps.
• Overall length- Front tire fin to end of lower link- 115".
• Overall width- 64".
• Overall height- 52".
• Ground clearance- 13" under center. 21" under axles.
• Turning circle- 16 ft. diameter with use of brakes.
• Shipping weight-approximately 2,140 lbs. |
| Color |
|
• Battleship Gray (the whole dang thing!) |
